Built for Touring. Engineered for Patrols.

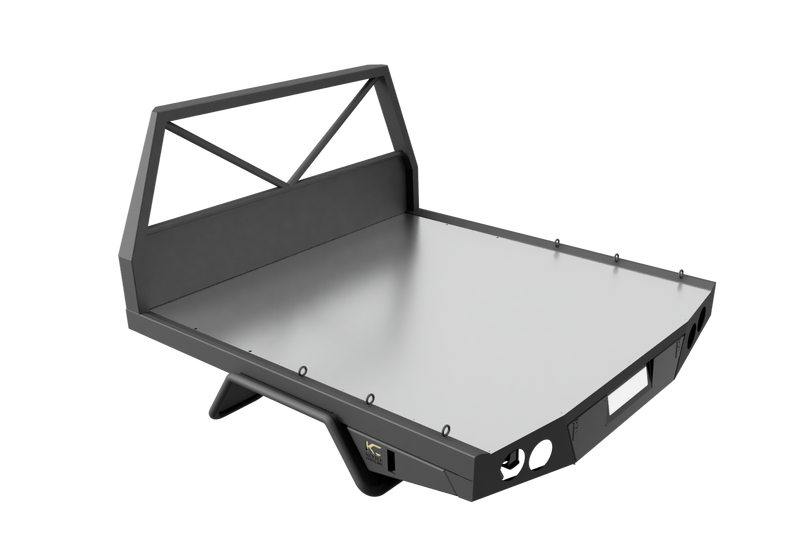

The GU Tourer Tray is a purpose-built aluminium tray designed specifically for Nissan Patrol touring builds. Made from high-grade 6082-T6 and 5083 marine-grade aluminium, it offers the ideal balance between weight savings, strength, and storage functionality. This tray is fully TIG welded, CNC-folded, and FEA-tested—delivering long-term performance without compromising on looks or durability.



Key Features:

• FEA Tested & Verified

Each tray is Finite Element Analysis (FEA) tested for structural performance. A copy of the report is included with your order.

• High-Grade Aluminium Build

– 5mm 6082-T6 structural interlocking floor extrusions

– 3mm 6082-T6 tread plate floor (optional non-slip coating)

– 3mm 5083 folded components

• Fully TIG Welded Construction

No MIG, no shortcuts. All seams are hand-welded.

• Canopy Mounting Points

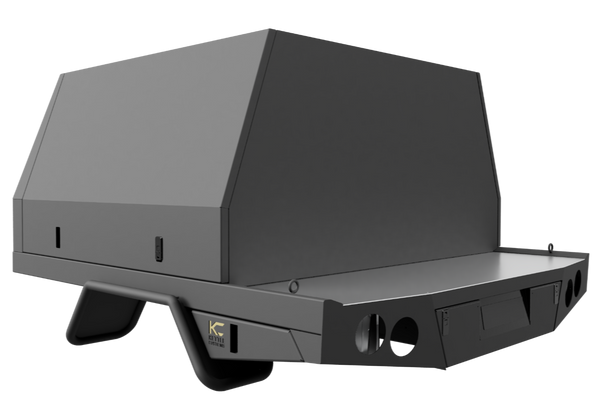

Pre-aligned for Kettle Customs removable canopy compatibility.

• 1200mm Under-Tray Drawer (220kg Rated)

Heavy-duty drawer mounted with secure bolted connections.

• Rear Toolboxes + Fuel Filler Relocation

Driver-side lockable toolbox houses relocated filler. Rubber-lined with internal coating. All relocation hardware supplied.



• ADR-Compliant Lighting

Includes Roadvision BR122ARR LED lights and recessed number plate light.

• Adjustable 10mm Aluminium Mounting Brackets

– Polyurethane isolators prevent electrolysis

– Height tabs simplify installation

– Mounts with M16 bolts through 16mm holes

• Electrolysis Protection

All stainless hardware is pre-treated to prevent corrosion.

• Free Installation (Melbourne Only)

Available at our workshop in Somerville VIC 3912.

• Australia-Wide Freight

Affordable shipping available nationwide (3–7 business days typical delivery).

• Current Lead Times (March Update):

– 3 weeks for tray-only orders

– 7 weeks for tray + canopy combos

Strength & Intended Use:

This tray is fully aluminium and designed for load-bearing strength equal to our mild steel options.

However, aluminium is less impact-resistant than steel.

Recommended for:

– Touring & travel builds

– Lightweight, performance-focused setups

– Fuel-efficient 4WDs

– General off-road use (excluding extreme impact conditions)

Not ideal for:

– Constant rock abuse or high-impact track work

– Harsh 4WD environments (consider mild steel alternatives)



Need Custom Options or Help?

Contact us anytime via email or phone. We’re here to help design your dream touring setup.
